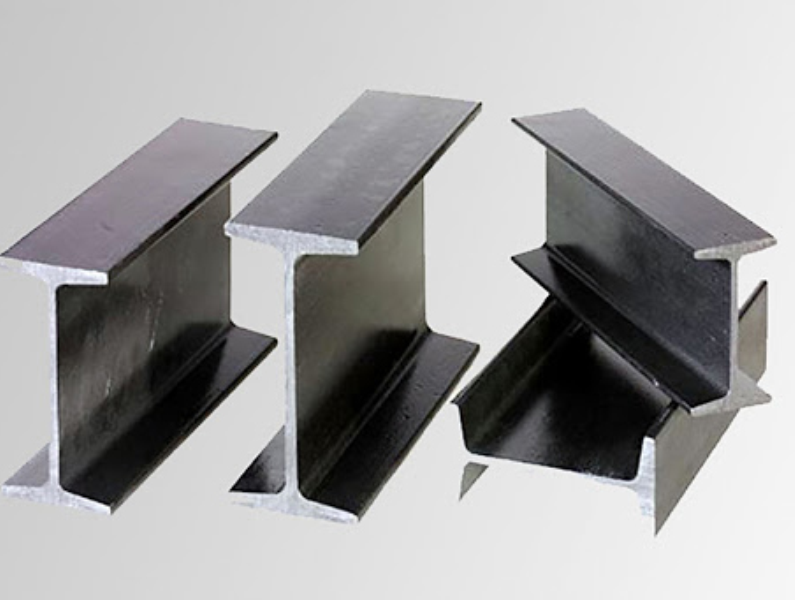

Hea Profil Ölçüleri |
Hea Geometrik Ölçüleri |
Hea Kesit Alanı |
Hea Demir Ağırlıkları |
Kesitin Çevre Alanı |
|||
|---|---|---|---|---|---|---|---|
| h | b | t | s | F | G | U | |
| HEA | mm | mm | mm | mm | m2 | kg/m | m2/m |
| HEA 100 | 96 | 100 | 8.0 | 5.0 | 21.24 | 16.7 | 0.561 |
| HEA 120 | 114 | 120 | 8.0 | 5.0 | 25.34 | 19.9 | 0.677 |
| HEA 140 | 133 | 140 | 8.6 | 5.5 | 31.42 | 24.7 | 0.794 |
| HEA 160 | 152 | 160 | 9.0 | 6.0 | 38.77 | 30.4 | 0.906 |
| HEA 180 | 171 | 180 | 9.5 | 6.0 | 45.25 | 35.5 | 1.024 |
| HEA 200 | 190 | 200 | 10.0 | 6.5 | 53.83 | 42.3 | 1.136 |
| HEA 220 | 210 | 220 | 11.0 | 7.0 | 64.34 | 50.5 | 1.255 |
| HEA 240 | 230 | 240 | 12.0 | 7.5 | 76.84 | 60.3 | 1.369 |
| HEA 260 | 250 | 260 | 12.5 | 7.5 | 86.82 | 68.2 | 1.484 |
| HEA 280 | 270 | 280 | 13.0 | 8.0 | 97.26 | 76.4 | 1.603 |
| HEA 300 | 290 | 300 | 14.0 | 8.5 | 112.5 | 88.3 | 1.717 |
| HEA 320 | 310 | 300 | 15.5 | 9.0 | 124.4 | 97.6 | 1.756 |
| HEA 340 | 330 | 300 | 16.5 | 9.5 | 133.5 | 105.0 | 1.795 |
| HEA 360 | 350 | 300 | 17.5 | 10.0 | 142.8 | 112.0 | 1.834 |
| HEA 400 | 390 | 300 | 19.0 | 11.0 | 159.0 | 125.0 | 1.912 |
| HEA 450 | 440 | 300 | 21.0 | 11.5 | 178.0 | 140.0 | 2.011 |
| HEA 500 | 490 | 300 | 23.0 | 12.0 | 197.5 | 155.0 | 2.110 |
| HEA 550 | 540 | 300 | 24.0 | 12.5 | 211.8 | 166.0 | 2.209 |
| HEA 600 | 590 | 300 | 25.0 | 13.0 | 226.5 | 178.0 | 2.308 |
